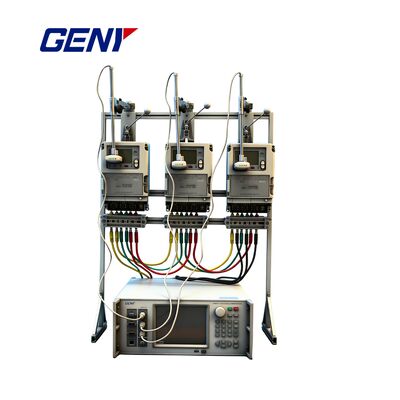

High-Accuracy Portable Energy Meter Test Equipment for On-Site Calibration

Nama merek:	GENY
Nomor Model:	YC99T-3C
MOQ:	1
harga:	negotiate rates
Ketentuan Pembayaran:	T/t, l/c, d/p, t/t
Kemampuan Penyediaan:	10 set / 1 bulan

Informasi detil

Deskripsi Produk

Informasi detil

Tempat asal:

Cina

Sertifikasi:

ISO, CE

Posisi / Akurasi Meteran:

3 / 0,05

Kisaran Output Arus AC:

0,05A 0,2A 1A 5A 16,67A 50A

Rentang Keluaran Tegangan AC:

57.7V,100V, 220V, 380V 660

Akurasi Pengukuran:

%0,05

Kemasan rincian:

Kasus kayu lapis

Menyediakan kemampuan:

10 set / 1 bulan

Menyoroti:

portable energy meter test equipment

high-accuracy meter calibration equipment

on-site energy meter test equipment

Deskripsi Produk

High-Accuracy Portable Energy Meter Test Equipment for On-Site Calibration

Overview

This portable meter test equipment is designed for on-site and laboratory testing, calibration, and verification of electric energy meters. It serves power grid measurement centers, power supply companies, power plants, national metrology institutes, and authorized calibration laboratories.

The system is also suitable for medium and large industrial enterprises including railway, petrochemical, and manufacturing companies, as well as energy meter manufacturers for production testing, R&D verification, and quality control. It is ideal for universities, research institutes, and professional laboratories engaged in electrical measurement and metrology research.

With its portable design, multi-function testing capability, and high accuracy, this equipment is well suited for both field applications and fixed testing environments.

Typical Applications

On-site calibration and verification of energy meters
Laboratory testing and certification
Production line testing for meter manufacturers
R&D and performance evaluation
Teaching and research in electrical metrology

Main Functions and Features

Supports testing of single-phase and three-phase energy meters, including electronic and mechanical types
Automatic or manual testing of basic error, starting test, creeping test, standard deviation, and other customizable test items
User-defined testing plans to meet different standards and applications
Influence tests including voltage, frequency, harmonic, reverse phase sequence, and unbalanced voltage influence tests
Supports DL/T 645 communication protocol for functional testing of multi-function energy meters
Rich communication interfaces: RS232, RS485, Extended I/O, Ethernet, USB, and Wi-Fi
Harmonic output capability from 2nd to 63rd order
8-inch touchscreen with intuitive, user-friendly operating system
Can test up to 3 energy meters simultaneously for improved testing efficiency

Technical Specifications

Parameter	Specification
Model No.	YC99T-3C
Meter Position / Accuracy	3 / 0.05
AC Voltage Output Range	57.7V, 100V, 220V, 380V, 660V
AC Current Output Range	0.05A, 0.2A, 1A, 5A, 16.67A, 50A
Power Output Accuracy	Active, Reactive power accuracy: ±0.05%RG
Phase Output Range	0° - 359.99°
Frequency Output Range	40Hz - 70Hz
Harmonic Setting	2nd - 63rd order, 0-40% amplitude
Energy Error Measurement	Active energy basic error limit: ±0.05%RD
Power Supply	AC220V±15% or 110V±15%
Operating Environment	20°C - 30°C, relative humidity
Dimensions & Weight	600mm(L) × 400mm(W) × 266mm(H), 30kg
