YCS-103 Three-Phase Power Source for Energy Meter Testing

Nama merek:	GENY
Nomor Model:	YCSS-103
MOQ:	1
harga:	negotiate rates
Ketentuan Pembayaran:	T/t, l/c, d/p, t/t
Kemampuan Penyediaan:	10 buah/ 1 bulan

Informasi detil

Deskripsi Produk

Informasi detil

Tempat asal:

Cina

Sertifikasi:

ISO, CE

Dokumen:

Catalogue——Meter Test S...m..pdf

Akurasi Pengaturan:

Lebih baik dari 0,05% pada nilai kisaran akhir

Stabilitas:

Lebih baik dari 0,005%/jam (waktu integrasi 150 detik）

Faktor distorsi:

Lebih baik dari 0,3% untuk beban resistansi linier

Harmonik:

2nd - ke -21 gratis yang dapat diprogram

Suplai tegangan:

3×220/380V±10% atau disesuaikan 50/60Hz±2Hz

Uji output arus:

3×(1mA – 100A)

Kemasan rincian:

Kasus kayu lapis

Menyediakan kemampuan:

10 buah/ 1 bulan

Menyoroti:

three-phase power source for energy meters

stationary power source with warranty

energy meter testing power supply

Deskripsi Produk

YCS-103 Three-Phase Power Source for Energy Meter Testing

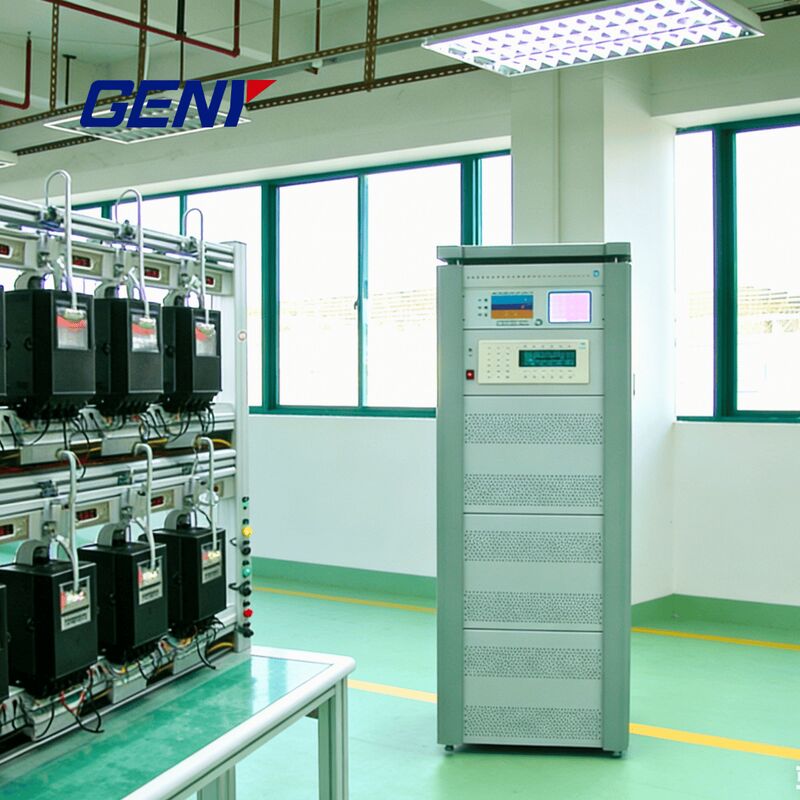

The YCS-103 Three-Phase Power Source is a high-precision, programmable power source designed for energy meter testing and calibration. It provides independent three-phase voltage and current outputs, making it suitable for testing both three-phase and single-phase electricity meters in laboratories, meter production lines, and test benches.

Key Features & Functions

Three independent voltage and current channels for accurate testing of three-phase and single-phase energy meters
High accuracy and long-term output stability ensures reliable and repeatable results for meter verification and calibration
Programmable harmonic output (2nd-41st harmonics) with adjustable harmonic amplitude and phase angle, compliant with modern meter testing standards
RS-232 communication interface enables fully automatic operation and easy integration with meter test bench systems
Optional built-in keyboard supports both manual control and PC-controlled operation
Rugged aluminum alloy housing provides lightweight, corrosion-resistant construction suitable for long-term industrial use
Comprehensive protection design with built-in protection against overload, voltage short-circuit, and current open-circuit
User-friendly control software with simple interface for fast setup, operation, and testing efficiency
CE certified and complies with EU health, safety, and EMC standards

Typical Applications
