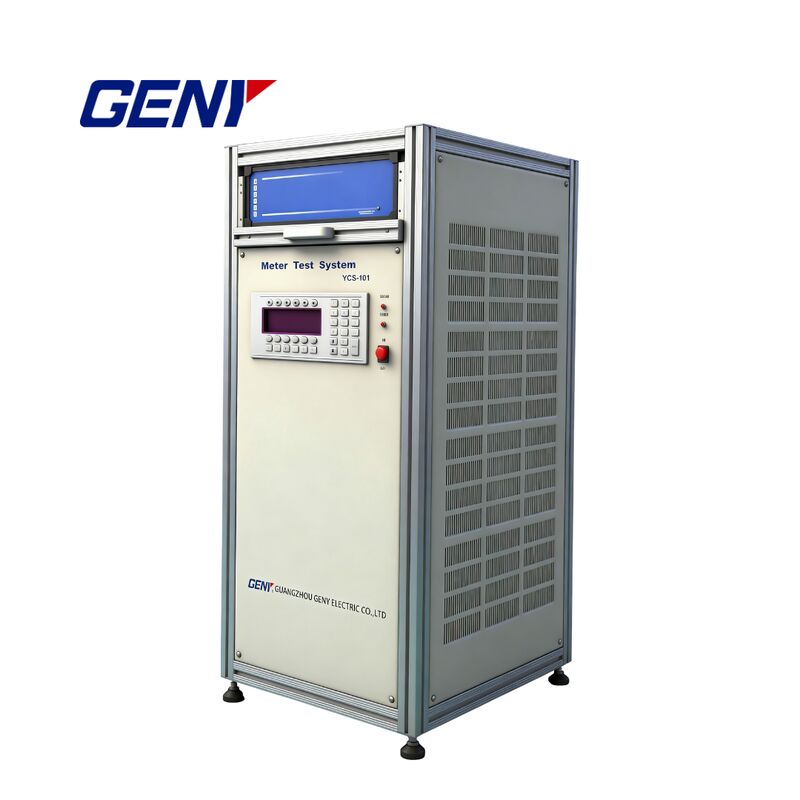

High-Precision Stationary Power Source for Energy Meter Test Bench

High-Precision Stationary Power Source for Energy Meter Test Bench

Nama merek: GENY
Nomor Model: YCSS-103
MOQ: 1
harga: negotiate rates
Ketentuan Pembayaran: T/t, l/c, d/p, t/t
Kemampuan Penyediaan: 10 buah/ 1 bulan
Informasi detil
Tempat asal:
Cina
Sertifikasi:
ISO, CE
Suplai tegangan:
220V±10% atau 50/60Hz±2Hz
Uji arus keluaran saat ini:
1mA – 100A
Output tegangan uji (fase-netral):
24V 288V atau disesuaikan
Regulasi beban dari 0-maks. memuat:
<0,01%
Kemasan rincian:
Kasus kayu lapis
Menyediakan kemampuan:
10 buah/ 1 bulan
Menyoroti:

high-precision stationary power source

,

energy meter test bench power supply

,

stationary power source with warranty

Deskripsi Produk
High-Precision Stationary Power Source for Energy Meter Test Bench
Product Overview

The Stationary Power Source is a high-accuracy, high-stability programmable power source specifically designed for energy meter testing, calibration systems, and metrology laboratories. It provides reliable and stable voltage and current output to ensure precise and repeatable test results.

  • High accuracy and excellent output stability, ideal for precision measurement applications
  • Equipped with RS232 communication interface for automatic and remote operation
  • Optional built-in keyboard for convenient manual operation
  • Supports programmable harmonic output from 2nd to 21st order, with adjustable amplitude and phase angle
  • Rugged aluminum alloy enclosure, lightweight, high strength, and corrosion-resistant
  • Comprehensive protection functions, including:
    • Overload protection
    • Short voltage circuit protection
    • Open current circuit protection
  • User-friendly control software with simple operation and fast system integration
Applications
  • National and regional utility companies
  • Government metrology and calibration bureaus
  • Energy meter and electrical instrument manufacturers
  • Testing laboratories and research institutions
  • Energy meter test benches and verification systems
Primary Competitive Advantages
  • Industrial-grade, high-quality design for long-term stable operation
  • High power output capacity:
    • Maximum voltage output power: 1000 VA
    • Maximum current output power: 1500 VA
  • Extremely high power stability, suitable for high-precision calibration environments
  • Low distortion performance, with total harmonic distortion less than 0.3% under linear resistive load
