Fully Automatic Meter Test System for Utility and Meter Manufacturer Applications

Name: Fully Automatic Meter Test System for Utility and Meter Manufacturer Applications
Brand: Guangzhou GENY Electric Co., Ltd
SKU: YC1893D
Availability: InStock

Nama merek:	GENY
Nomor Model:	YC1893D
MOQ:	1 buah
harga:	Bisa dinegosiasikan
Ketentuan Pembayaran:	L/C,T/T,D/P
Kemampuan Penyediaan:	100/Tahun

Informasi detil

Deskripsi Produk

Informasi detil

Tempat asal:

Cina

Sertifikasi:

ISO, CE

Dokumen:

Catalogue——Meter Test S...m..pdf

Tegangan Catu Daya:

3 × 220V±10%

Output tegangan uji (fase-netral):

3 × (24V – 300V)

Kekuatan keluaran tegangan:

3 × 1000VA

Akurasi Pengaturan:

Lebih baik dari 0,05% pada nilai kisaran akhir

Stabilitas:

Lebih baik dari 0,005% /jam (waktu integrasi 150 -an)

Resolusi:

Lebih baik dari 0,01% dari nilai rentang skala penuh

Kemasan rincian:

Kasus kayu lapis

Menyediakan kemampuan:

100/Tahun

Menyoroti:

fully automatic meter test system

energy meter testing equipment with warranty

utility meter testing system

Deskripsi Produk

Fully Automatic Meter Test System for Utility and Meter Manufacturer Applications

GENY's meter test system is a fully automatic solution designed for high-accuracy calibration, verification, and performance testing of three-phase energy meters. By utilizing advanced electronic measurement technology and a modular system architecture, the system enables flexible configuration to meet different testing standards and application requirements.

This comprehensive meter test system is widely used by electric power utilities, energy meter manufacturers, metrology laboratories, and quality inspection departments. It supports both type testing and routine testing, making it suitable for laboratory environments, production lines, and quality assurance processes.

System Architecture and Components

The meter test system integrates multiple high-precision modules into a unified platform, providing complete testing capabilities:

Three-phase static power source with stable output
High-accuracy three-phase reference standard meter
Automatic meter suspension test rack for efficient operation
Auxiliary measurement and control modules
Industrial PC and professional software for centralized control and data management

The modular design allows easy expansion and customization according to specific customer requirements and testing standards.

Testing Functions and Capabilities

The meter test system supports a comprehensive range of calibration and verification functions to ensure complete performance evaluation:

Accuracy testing according to IEC standards
No-load (creeping) test
Starting current test
Error repeatability test
Dial (register) test
Clock frequency accuracy test
Maximum demand test
Influence quantity tests affecting meter accuracy:
- Voltage influence
- Frequency influence
- Reverse phase sequence influence
- Voltage unbalance influence
Harmonic influence testing in voltage and current circuits
Sub-harmonic testing in accordance with IEC standards
Optional odd harmonic testing

These comprehensive testing functions ensure full performance evaluation throughout the meter's complete operating range, meeting international standards and quality requirements.

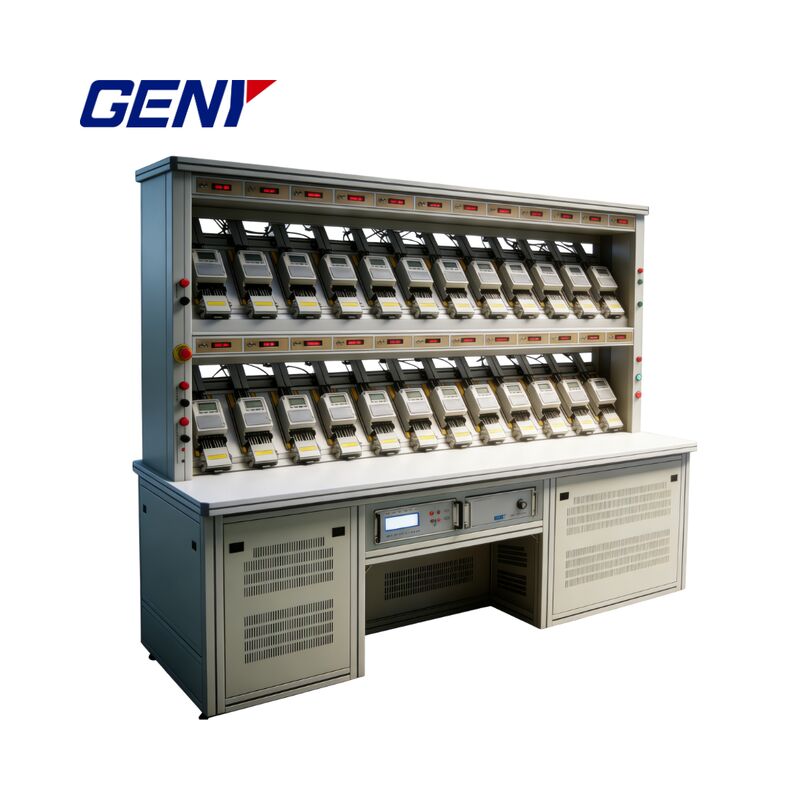

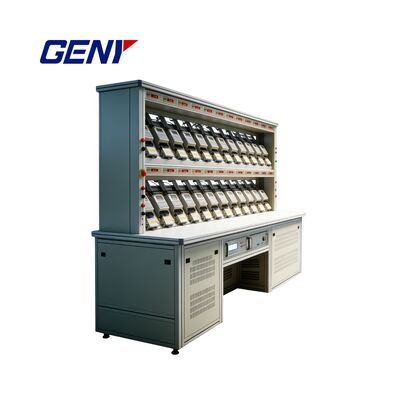

System Visuals
