Three Phase Energy Meter Testing Equipment with 0.01% Accuracy

Name: Three Phase Energy Meter Testing Equipment with 0.01% Accuracy
Brand: Guangzhou GENY Electric Co., Ltd
SKU: YC1893D
Availability: InStock

Nama merek:	GENY
Nomor Model:	YC1893D
MOQ:	1 buah
harga:	Bisa dinegosiasikan
Ketentuan Pembayaran:	L/c, t/t, d/p
Kemampuan Penyediaan:	100/Tahun

Informasi detil

Deskripsi Produk

Informasi detil

Tempat asal:

Cina

Sertifikasi:

ISO, CE

Dokumen:

Three-phase meter test syst...em.pdf

Kekuatan output voltase uji:

24V 288V atau disesuaikan

Rentang Frekuensi:

45Hz 65Hz

Suplai tegangan:

220V±10% atau disesuaikan 50/60Hz±2Hz

Uji output arus:

1MA - 100a atau disesuaikan, maks.200a

Stabilitas:

Lebih baik dari 0,005% /jam (waktu integrasi 150 -an)

Resolusi:

Lebih baik dari 0,01% dari nilai rentang skala penuh

Kemasan rincian:

kasus kayu lapis

Menyediakan kemampuan:

100/Tahun

Menyoroti:

three phase energy meter tester

energy meter testing equipment with warranty

high accuracy energy meter tester

Deskripsi Produk

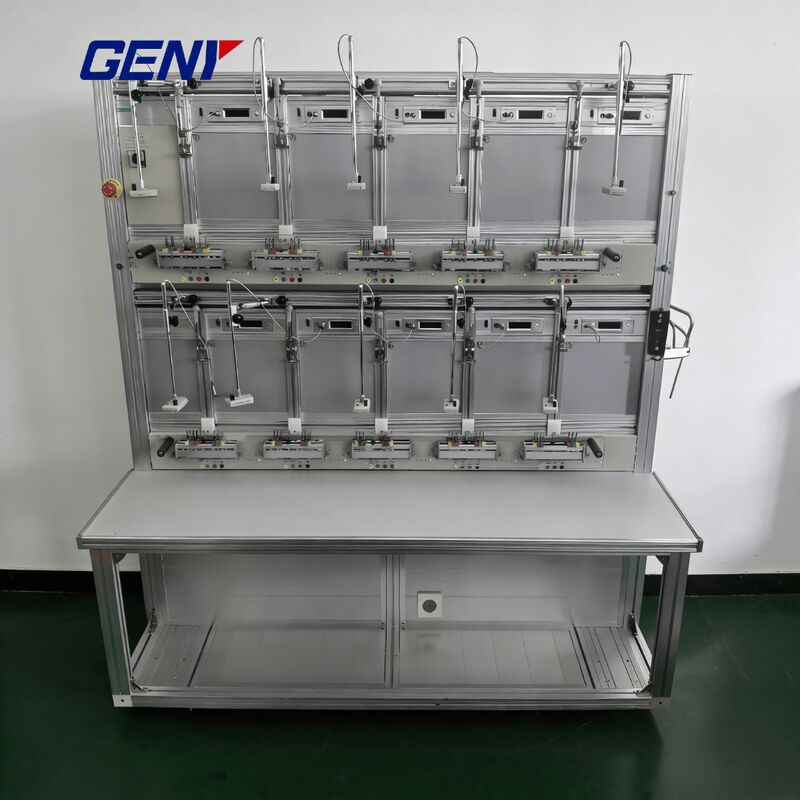

Three Phase Energy Meter Testing Equipment with 0.01% Accuracy

GENY Energy Meter Testing Equipment is a professional three phase energy meter test bench designed for high-precision testing and calibration of mechanical, electromechanical, and electronic energy meters. The system supports automatic, semi-automatic, and manual operation, providing maximum flexibility for laboratories, utility companies, and energy meter manufacturers. With ultra-high accuracy, excellent power stability, and modular configuration, this equipment fully complies with international metrology standards and is ideal for long-term industrial use.

Key Specifications

Meter Types Supported	Mechanical energy meters, Electromechanical energy meters, Electronic energy meters
Meter Wiring Modes	3 Phase 4 Wire (3P4W), 3 Phase 3 Wire (3P3W), Single Phase 2 Wire (1P2W)
Testing Modes	Active energy test, Reactive energy test, Cross-connected reactive energy test
Accuracy Class	0.05 / 0.02, Highest accuracy up to 0.01% (under 3 meter positions)
Meter Positions	Configurable from 3 to 48 three-phase meter positions

Main Features

Simultaneous testing of meters with same specifications but different meter constants
Automatic disc rotor mark positioning for mechanical meters, significantly improving efficiency
Starting test and creeping test
Neutral current test (optional)
Optional ICT installed at each meter position to test three-phase meters with closed I-P links
High-level safety protection system: Overload protection, Voltage short-circuit protection, Current open-circuit protection
Synchronized scanning head movement for easy and stable control
Lightweight aluminum alloy frame: High strength, Corrosion resistant, Long service life

Advanced Testing Software

The system is equipped with professional energy meter testing software, fully compatible with Windows 2000 / XP / 7 / 8 / 10.

Software Functions Include:

Accuracy (error) test
Harmonic test
Demand test
Timing error test
Voltage, frequency, and harmonic influence test
Data storage, analysis, and report generation

User-friendly interface ensures easy operation and fast learning.
