YC1893D Energy Meter Test Equipment for Precision Meter Calibration

Nama merek:	GENY
Nomor Model:	YC-1893D
MOQ:	1 buah
harga:	Bisa dinegosiasikan
Ketentuan Pembayaran:	L/c, t/t, d/p
Kemampuan Penyediaan:	100/tahun

Informasi detil

Deskripsi Produk

Informasi detil

Tempat asal:

Cina

Sertifikasi:

ISO, CE

Dokumen:

Three-phase meter test syst...em.pdf

Kelas akurasi TIK:

0,05 / 0,01

Keluaran tegangan uji (Fase-Netral):

3x ((24V ~ 288V) ((atau disesuaikan)

Uji output arus:

3x (1mA ~ 100a)

Suplai tegangan:

3x220/380V ± 10%(atau disesuaikan) 50/60Hz ± 2Hz

KELEMBABAN RELATIF:

35%~ 85%

Suhu lingkungan:

-10°C~+40°C

Kemasan rincian:

kasus kayu lapis

Menyediakan kemampuan:

100/tahun

Menyoroti:

precision energy meter calibration equipment

stationary meter test equipment with warranty

YC1893D meter calibration test device

Deskripsi Produk

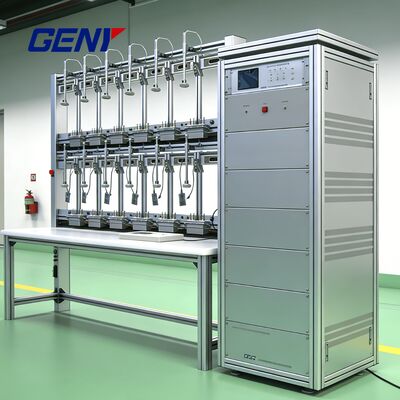

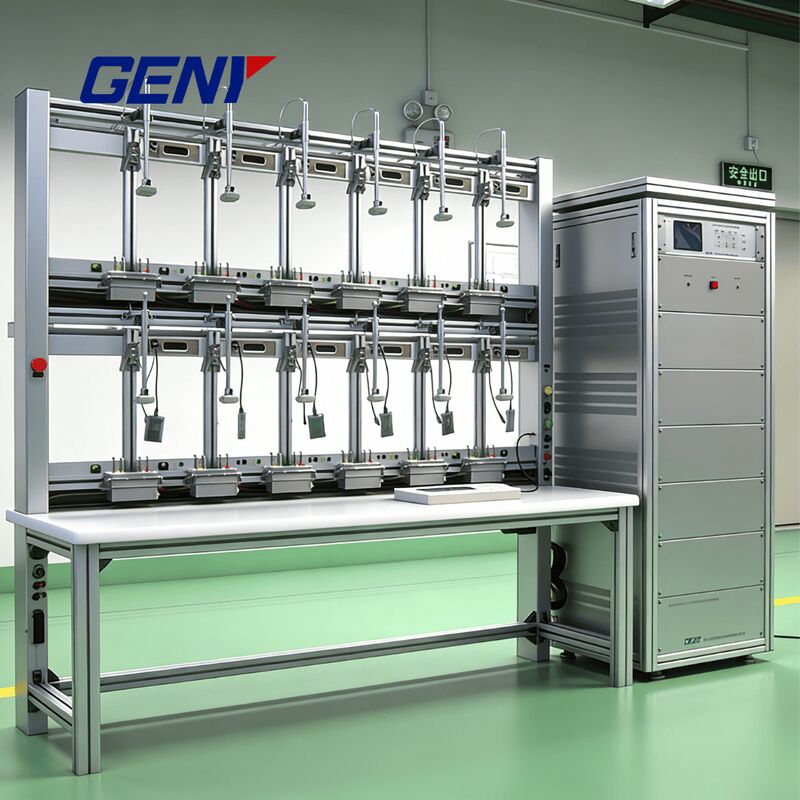

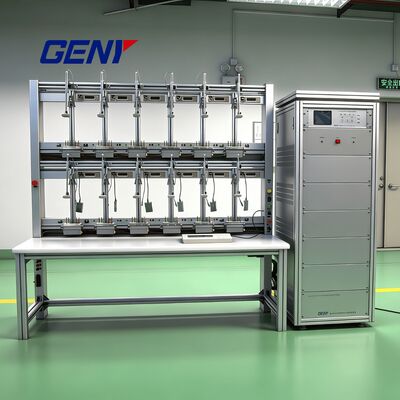

YC1893D Energy Meter Test Equipment for Precision Meter Calibration

The YC1893D Three-Phase Energy Meter Test Equipment is a professional, high-precision testing system designed for verification and calibration of three-phase and single-phase electric energy meters. Widely utilized by power utilities, metrology laboratories, and energy meter manufacturers across Europe, the Middle East, Africa, and Southeast Asia, this advanced test bench supports automatic, semi-automatic, and manual operation for reliable performance in both laboratory calibration and mass production testing environments.

Key Features

Installation of ICT (current transformer) at each meter position for accurate testing of three-phase meters with closed I-P links
Compatible with mechanical meters, electromechanical meters, electronic meters, and smart energy meters
Supports meter wiring types: 3P4W, 3P3W, and 1P2W
Multiple testing modes: active energy, reactive energy, and cross-connected reactive energy
Simultaneous testing of meters with identical specifications but different meter constants
Automatic disc rotor mark positioning for mechanical meters to improve testing efficiency
Functions for starting test and creeping test
Comprehensive protection against overload, voltage short circuit, and current open circuit
Synchronized scanning head movement for simplified operation and control
Rugged aluminum alloy structure - lightweight, corrosion resistant, and durable

Software Capabilities

The meter test equipment software is compatible with Windows 2000 / XP / 7 / 8 / 10 and provides a user-friendly interface for modern energy meter testing requirements, including:

Accuracy and error verification test
Harmonic test
Demand and load profile test
Influence and disturbance tests for voltage, frequency, and harmonics
Communication testing via RS232 and Ethernet ports at each meter position
