IEC-Compliant Automatic Meter Test Bench for Energy Meters

IEC-Compliant Automatic Meter Test Bench for Energy Meters

Nama merek:	GENY
Nomor Model:	YC1891/3D
MOQ:	1 buah
harga:	Bisa dinegosiasikan
Ketentuan Pembayaran:	L/c, t/t, d/p
Kemampuan Penyediaan:	30 pcs per bulan

Informasi detil

Deskripsi Produk

Informasi detil

Tempat asal:

Tiongkok

Sertifikasi:

ISO, CE

Dokumen:

Geny product brochure 2020.pdf

Ketepatan:

0,05 / 0,02/ 0,01%

Kekuatan keluaran tegangan:

Maks.3*2000VA

Daya output saat ini:

Maks.3*2800VA

Suhu Sekitar:

-10°C -- +40°C

Kemasan rincian:

kasus kayu lapis

Menyediakan kemampuan:

30 pcs per bulan

Menyoroti:

IEC-compliant automatic meter test bench

stationary energy meter test bench

automatic meter test bench with warranty

Deskripsi Produk

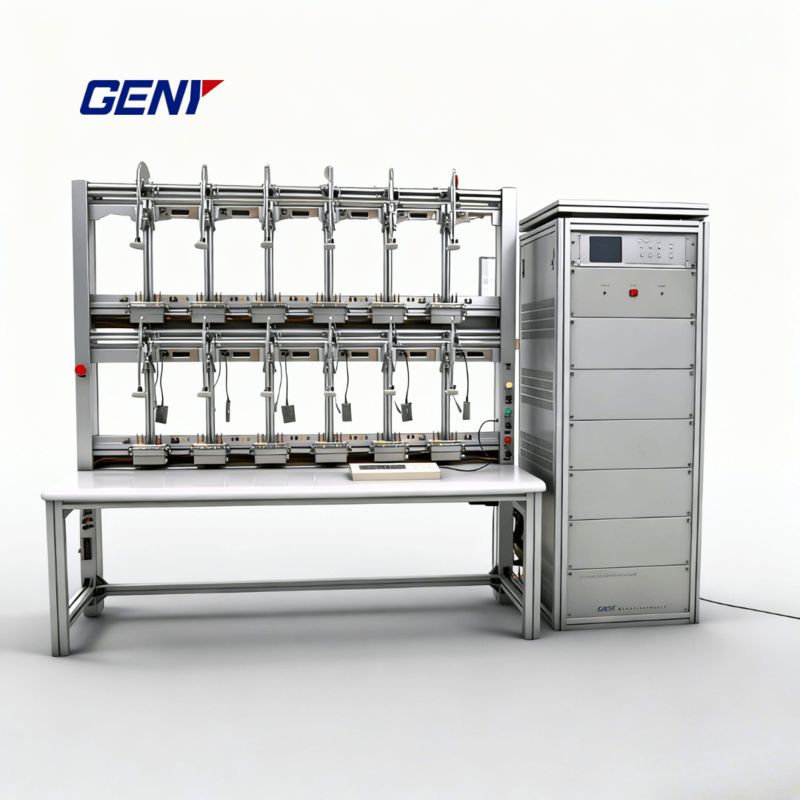

IEC-Compliant Automatic Meter Test Bench for Energy Meters

Our advanced energy meter test system utilizes state-of-the-art electronic measurement technology and a modular design, resulting in a fully automatic calibration solution. The system is fully compliant with the IEC 60736 standard and supports high-efficiency, multi-position testing for electric energy meters.
Designed for versatility, it can be seamlessly integrated with a variety of reference standards and power sources. This flexibility allows us to meet the specific requirements of a wide range of clients, including energy meter manufacturers, power utility companies, governmental metrology institutes, and calibration laboratories.

Key Features

IEC-Compliant Performance: Built strictly to IEC standards, supporting full testing coverage for active/reactive/apparent energy (all 4 quadrants) -- critical for global meter certification.
Durable Aluminum Alloy Construction: Lightweight yet robust, with corrosion resistance to ensure long-term stability in lab/industrial environments.
Fully Automatic Testing Capabilities:
- Accuracy testing (4-quadrant, IEC-aligned)
- Creeping (no-load) & starting current tests
- Dial/register verification
- Influence quantity testing (voltage, frequency, harmonic distortion)
- Error repeatability analysis
- Sub/odd harmonic testing (up to 41st order, IEC-standard)
- Tamper & fraud monitoring
- Simultaneous multi-position meter testing (high throughput)
Wide Voltage/Current Range: Supports up to 480V & 200A -- compatible with most global meter specifications.
Built-In Protection Functions: Overload, voltage short-circuit, and current open-circuit safeguards to protect both the test bench and DUTs.
User-Friendly Software: Intuitive interface for Windows XP/7/8/10+; includes dedicated modules for all energy meter types (no extra software required).
Flexible Data Management: Stored test data can be exported in multiple formats (CSV, PDF, etc.) for seamless integration with third-party tools.
