High-Accuracy Universal Energy Meter Test Bench for Utilities & Laboratories

Name: High-Accuracy Universal Energy Meter Test Bench for Utilities & Laboratories
Brand: Guangzhou GENY Electric Co., Ltd
SKU: YC1893D
Availability: InStock

Nama merek:	GENY
Nomor Model:	YC1893D
MOQ:	1 buah
harga:	Bisa dinegosiasikan
Ketentuan Pembayaran:	L/c, t/t, d/p
Kemampuan Penyediaan:	100/tahun

Informasi detil

Deskripsi Produk

Informasi detil

Tempat asal:

Tiongkok

Sertifikasi:

ISO, CE

Dokumen:

Geny product brochure 2020.pdf

Suplai tegangan:

3x220/380V±10% (atau disesuaikan) 50/60Hz±2Hz

Suhu operasi:

-10℃—＋40℃

Kemanusiaan:

35%—85%

Ketinggian:

＜2500m

Kekuatan output voltase uji:

PN (0 hingga 320V), pp (0 hingga 550 V) disesuaikan

Kekuatan keluaran tegangan:

Maks.3×2000VA

Daya output saat ini:

Maks.3×2800VA

Resolusi:

Lebih baik dari 0,01% dari nilai rentang skala penuh

pengaturan akurasi:

Lebih baik dari 0,02% pada nilai rentang akhir

Stabilitas:

Lebih baik dari 0,005%/jam (waktu integrasi 150 detik)

Kemasan rincian:

kasus kayu lapis

Menyediakan kemampuan:

100/tahun

Menyoroti:

high-accuracy energy meter test bench

universal meter test bench for utilities

stationary energy meter test equipment

Deskripsi Produk

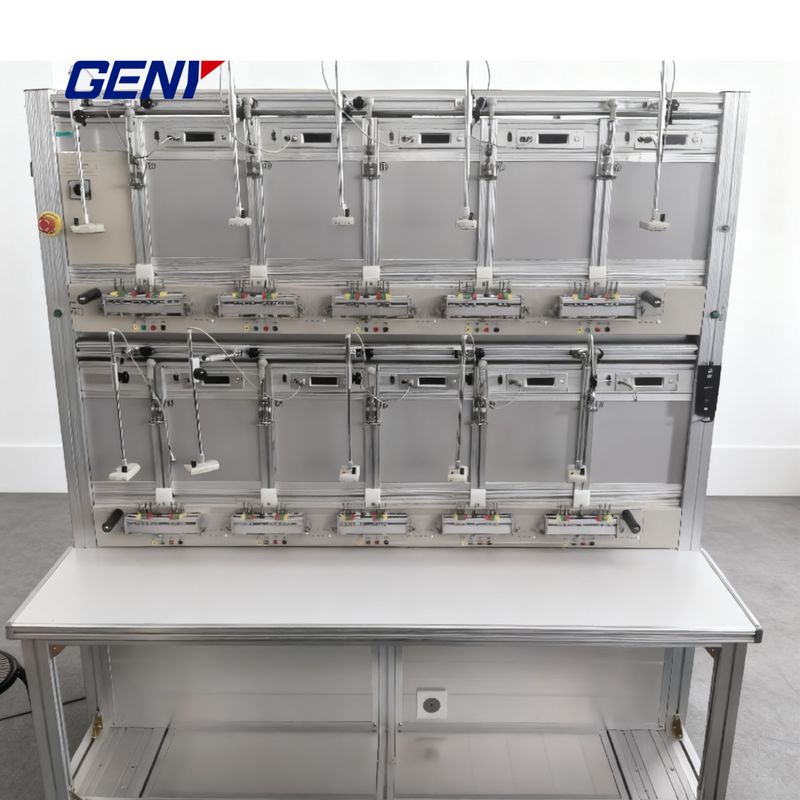

High-Accuracy Universal Energy Meter Test Bench for Utilities & Laboratories

The Three-Phase Energy Meter Test Bench is a high-precision system designed for fast and accurate testing and calibration of 1 to 20 single-phase or three-phase energy meters simultaneously. It supports accuracy classes 0.1, 0.2, 0.5, 1 and 2, and fully complies with IEC 62052-11 and IEC 62053-11/21/22/23 international standards.

Built for professional laboratory and utility use, the system provides stable power output, automated test procedures, and reliable measurement performance, ensuring efficient verification and calibration of modern electronic and electromechanical energy meters.

Key Features

Flexible Meter Testing Capabilities

Equipped with ICTs for testing both three-phase and single-phase meters with secure close-link configurations
Supports 2-wire / 3-wire single-phase meter testing
Supports 3-wire / 4-wire three-phase meter testing
Suitable for both direct and indirect (CT/VT-operated) meter connections
Adapted for both symmetrical and asymmetrical wiring arrangements

Smart Meter Compatibility

Built-in parallel communication interface for smart meter testing via RS232 and Ethernet
Supports advanced smart meter evaluation under various operating conditions

Calibration & Verification Support

Calibrating terminals integrated on the rack for complete system verification
Supports accuracy classes required by IEC standards
High-stability reference components ensure long-term measurement accuracy

Advanced Testing Functions

Accuracy & Performance Tests

IEC-compliant accuracy testing for all meter types
Creeping test
Starting current test
Repeatability / Error stability test
Register (Dial) test

Influence Quantity Testing

Simulates real-world operating conditions to verify meter performance under:

Voltage variation
Frequency deviation
Reverse phase sequence
Voltage unbalance
Heating and self-heating effects

Harmonic Influence Tests

Measures the influence of harmonic components in the voltage and current circuits according to IEC requirements

Tamper & Fraud Detection Testing

Comprehensive evaluation of meter responses under tampered conditions
Supports single-phase meter tamper testing to detect fraud attempts and non-standard wiring
