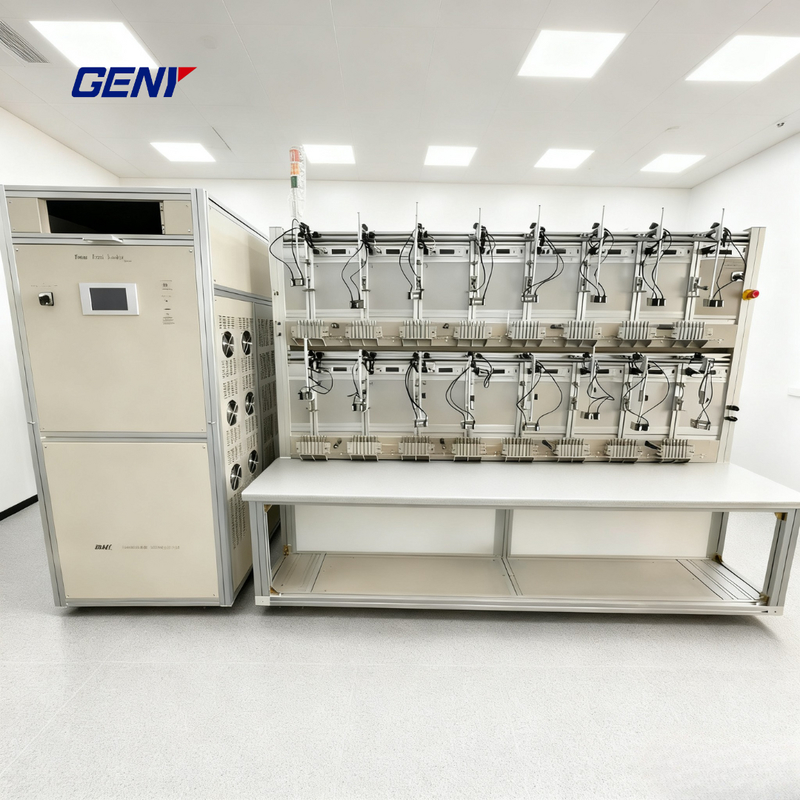

ProCal Stationary Energy Meter Test Bench

ProCal Stationary Energy Meter Test Bench

Nama merek:	GENY
Nomor Model:	YC1893D
MOQ:	1 buah
harga:	Bisa dinegosiasikan
Ketentuan Pembayaran:	L/c, t/t, d/p
Kemampuan Penyediaan:	30 pcs per bulan

Informasi detil

Deskripsi Produk

Informasi detil

Tempat asal:

Tiongkok

Sertifikasi:

ISO, CE

Dokumen:

Geny product brochure 2020.pdf

Output tegangan uji (fase-netral):

3× (24V – 500V) atau disesuaikan

Uji output arus:

3× (1mA – 120A)

Resolusi:

Lebih baik dari 0,01% dari nilai rentang skala penuh

pengaturan akurasi:

Lebih baik dari 0,05% pada nilai kisaran akhir

Kemasan rincian:

kasus kayu lapis

Menyediakan kemampuan:

30 pcs per bulan

Menyoroti:

ProCal stationary energy meter

meter test bench equipment

stationary meter test bench

Deskripsi Produk

ProCal Stationary Energy Meter Test Bench

GENY Electric, a national high-tech enterprise established in 2002, focuses on the field of high-precision electric energy testing, owns 18 patents, including 8 invention patents, and is a Guangzhou contract-abiding and trustworthy enterprise and a taxpayer with A-level tax credit. The company's main products include single-phase electric energy meter verification device, three-phase electric energy meter verification device, standard power electric energy meter, portable verification instrument, etc., which are widely used in electric power, railway, medical, water treatment and other industries.

Tests Supported

Accuracy / Error Testing (Active, Reactive, Apparent)
Starting Current Test
No‑Load / Creeping Test
Dial / Register Test
Repeatability / Stability Test
Influence Quantity Testing: voltage variation, frequency change, phase-sequence reversal, voltage unbalance
Harmonic Influence (programmable 2nd-21st) and Sub-harmonic Effects
Tamper / Fraud Simulation
Pre‑warming and Conditioning

Operating Modes

Manual Mode: Full operator control for parameter tuning and custom tests
Automatic Mode: Predefined test plans with automatic execution, data logging, and report generation

Components of the Test Bench

Three-Phase Voltage Source: 24-500 V per phase, high accuracy, programmable harmonics
Three-Phase Current Source: 1 mA-120 A per phase, high resolution and stable output
Reference Standard Meter: High-precision standard with ±0.02% accuracy for reliable calibration
Meter Rack / Suspension System: Configurable positions for single-phase and three-phase meters, optional scanning heads or pulse detection
Control System & Software: Windows-based PC, automated test sequencing, database storage, result search, and report generation
Optional Accessories: Isolating current transformers, additional meter positions, extended harmonics module, communication interfaces
