High-Precision Energy Meter Test Bench for IEC Accuracy Verification

High-Precision Energy Meter Test Bench for IEC Accuracy Verification

Nama merek: GENY
Nomor Model: YC1891D
MOQ: 1 buah
harga: Bisa dinegosiasikan
Ketentuan Pembayaran: L/c, t/t, d/p
Kemampuan Penyediaan: 30 pcs per bulan
Informasi detil
Tempat asal:
Tiongkok
Sertifikasi:
ISO, CE
Voltase:
Pasokan AC 240/415 V (+5% & -10%) atau disesuaikan
Frekuensi:
50/60Hz ±2Hz
Kapasitas daya:
> 3 × 6kVA
Suhu Sekitar:
-10°C … +40°C
Kelembaban relatif:
35%… 95%
Pembumian Sistem:
Netral beralasan kuat
Tingkat perlindungan lonjakan arus:
≥ 10 kV/120 Joule (10/1000µs)
Kemasan rincian:
kasus kayu lapis
Menyediakan kemampuan:
30 pcs per bulan
Menyoroti:

IEC accuracy energy meter test bench

,

high-precision meter test equipment

,

stationary energy meter verification bench

Deskripsi Produk
High-Precision Energy Meter Test Bench for IEC Accuracy Verification
Product Overview

Our Meter Test Bench is a high-precision system designed for comprehensive smart meter testing, energy meter calibration, and accuracy verification according to international standards (IEC 62052-11, IEC 62053-21/22/23). It provides reliable, automated testing for both single-phase and three-phase energy meters.

Key Features
  • Multi-Communication Interface Support: Supports RS232 and Ethernet communication ports for testing various smart meters and reference standards.
  • Calibrated Terminals for Test Bench Verification: Equipped with precision calibrating terminals for easy and accurate verification of the test bench system.
  • Single-Phase & Three-Phase Meter Testing: Compatible with both 1-phase and 3-phase energy meters, ensuring flexibility across all meter types.
  • Reference Standard Meter Accuracy Testing: Enables accuracy testing of the reference standard meter to maintain calibration integrity.
  • Pre-Warming Function: Automatically pre-warms meters before testing to stabilize measurement conditions and improve test accuracy.
Accuracy & Performance Tests
  • Accuracy Testing as per IEC Standards: Fully compliant with IEC 62052-11 and IEC 62053-21/22/23 for precise performance evaluation.
  • Creeping Test: Detects meter movement under no-load conditions to ensure meter stability and accuracy.
  • Starting Current Test: Verifies meter performance at minimal current levels according to IEC specifications.
  • Repeatability of Error Test: Confirms the consistency and reliability of meter measurement accuracy.
  • Dial Test: Evaluates mechanical meter register performance for proper functionality.
Influence Quantity & Harmonic Tests
  • Influence Quantity Tests: Assess meter accuracy under various influence quantities such as voltage, frequency, reverse phase sequence, and voltage unbalance.
  • Harmonic Influence Tests: Measures the influence of harmonic components in voltage and current circuits per IEC requirements.
  • Sub-Harmonics & Odd Harmonics Testing: Performs sub-harmonic and odd harmonic tests compliant with IEC 62052-11 / 62053-21/22/23 standards.

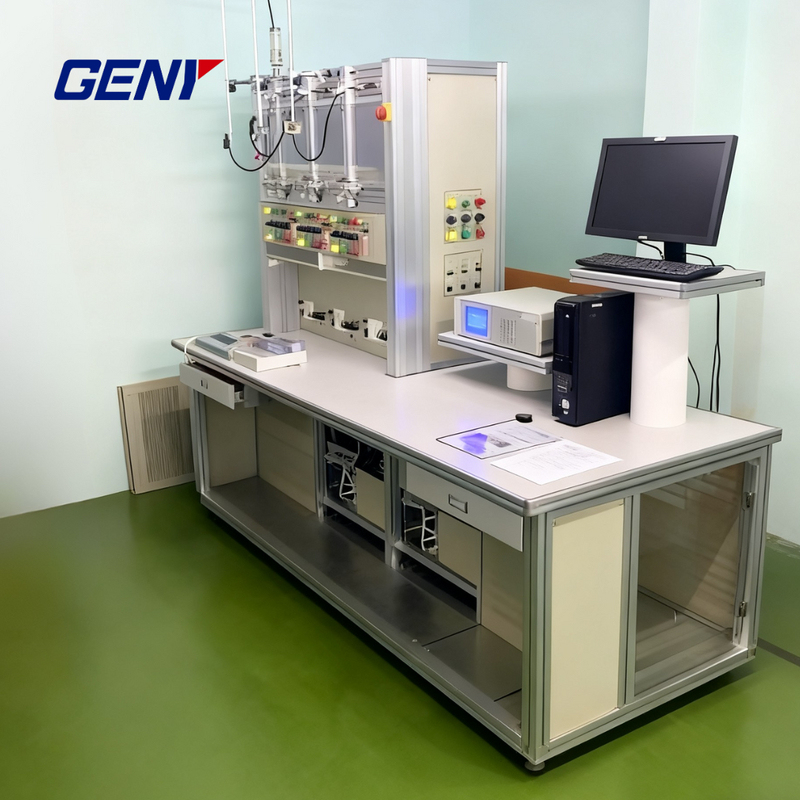

High-Precision Energy Meter Test Bench for IEC Accuracy Verification 0 High-Precision Energy Meter Test Bench for IEC Accuracy Verification 1
