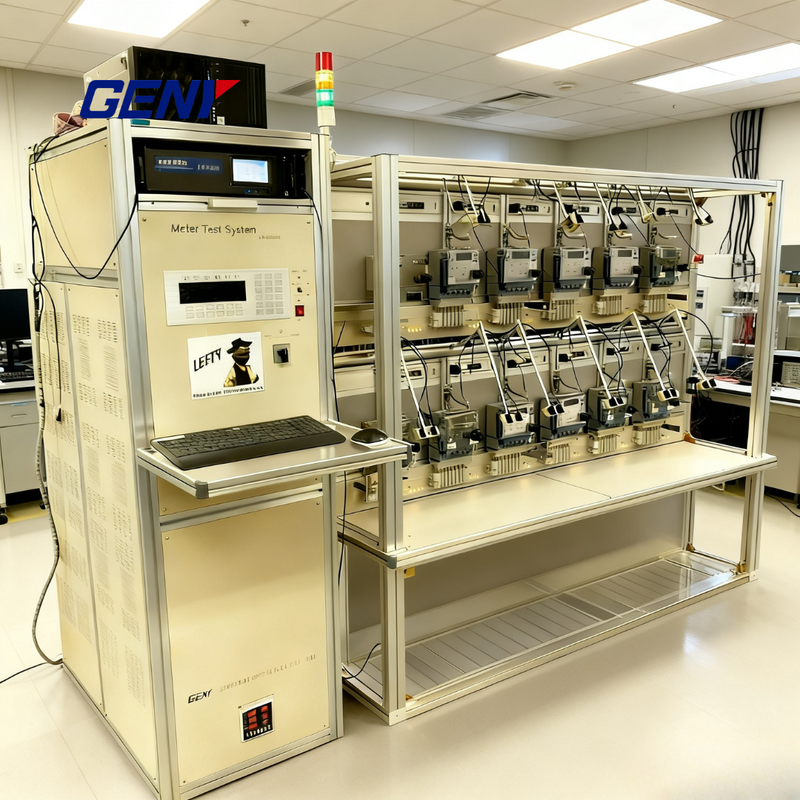

Automatic 24-Position High-Precision Three Phase Smart Meter Testing Equipment

Automatic 24-Position High-Precision Three Phase Smart Meter Testing Equipment

Nama merek:	GENY
Nomor Model:	YC-1893D
MOQ:	1 buah
harga:	Bisa dinegosiasikan
Ketentuan Pembayaran:	L/c, t/t, d/p
Kemampuan Penyediaan:	100/tahun

Informasi detil

Deskripsi Produk

Informasi detil

Tempat asal:

Tiongkok

Sertifikasi:

ISO, CE

Dokumen:

Geny product brochure 2020.pdf

Output daya arus:

2800va (maks)

Daya tegangan output:

2000va (maks)

Rentang penyesuaian frekuensi:

45Hz ... 65Hz

Arus terus menerus:

100a

Kemasan rincian:

kasus kayu lapis

Menyediakan kemampuan:

100/tahun

Menyoroti:

automatic three phase smart meter tester

high-precision meter testing equipment

24-position stationary meter test equipment

Deskripsi Produk

Automatic 24-Position High-Precision Three Phase Smart Meter Testing Equipment

Key Features

Compatible with 3P4W, 3P3W, and 1P2W meters for versatile testing
Automatic, semi-automatic, or manual operation modes
Simultaneous testing of multiple meters with different constants
Automatic rotor mark positioning for higher efficiency
Supports active power, reactive power, and cross-connected reactive power tests
Neutral current test, starting test, and creeping test (optional)
Optional ICT installation for testing three-phase meters with closed I-P links
Overload, short-circuit, and open-circuit protection for safety
Lightweight aluminum alloy body—strong, durable, and corrosion-resistant
User-friendly Windows software for error test, harmonic test, and influence test

Mechanical Structure

Whole Structure

The rack and power source part is a whole set, not only the electric part is a whole connection, but also the structure is connected together.

Fig.3-1 Whole structure test bench

Separate Structure

The rack and power source part is separate. Power source part is in a standard cabinet, it is only has electric connection with rack, if without connector (cable plug or connection port), they are two separate part.

Fig.3-2 Separate structure test bench

A test bench has 1 or 2 rack; it is depend on the quantity of MUT or customer's requirement. The rack include single side or both side rack, single line or double line rack. Following is the structure of equipment (introduce as example as separate structure test bench)

Fig.3-3 Inner structure of separate structure test bench

Fig.3-4 Rack
