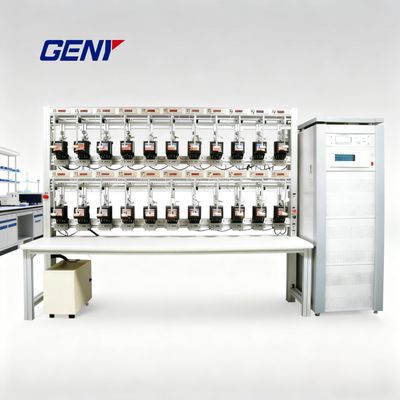

YC1893D Series Automatic Meter Test System

YC1893D Series Automatic Meter Test System

Nama merek:	GENY
Nomor Model:	YC-1893D
MOQ:	1
harga:	negotiate rates
Ketentuan Pembayaran:	T/t, l/c, d/p, t/t
Kemampuan Penyediaan:	10 set / 1 bulan

Informasi detil

Deskripsi Produk

Informasi detil

Tempat asal:

Tiongkok

Sertifikasi:

ISO, CE

Dokumen:

Three-phase meter test syst...em.pdf

Struktur:

Semua dalam satu

Stabilitas:

Lebih baik dari 0,005%/jam (waktu integrasi 150 detik)

Voltase:

3x230 / 400 V ±10%, 50 / 60 Hz ±2 Hz Frekuensi 50 Hz ±15%

Output tegangan uji (fase-netral):

3x(24 – 300V)

Resolusi:

Lebih baik dari 0,01% dari nilai rentang skala penuh

pengaturan akurasi:

Lebih baik dari 0,05% pada nilai kisaran akhir

Kemasan rincian:

Kasus kayu lapis

Menyediakan kemampuan:

10 set / 1 bulan

Menyoroti:

automatic meter test system YC1893D

stationary meter test equipment

YC1893D series meter testing

Deskripsi Produk

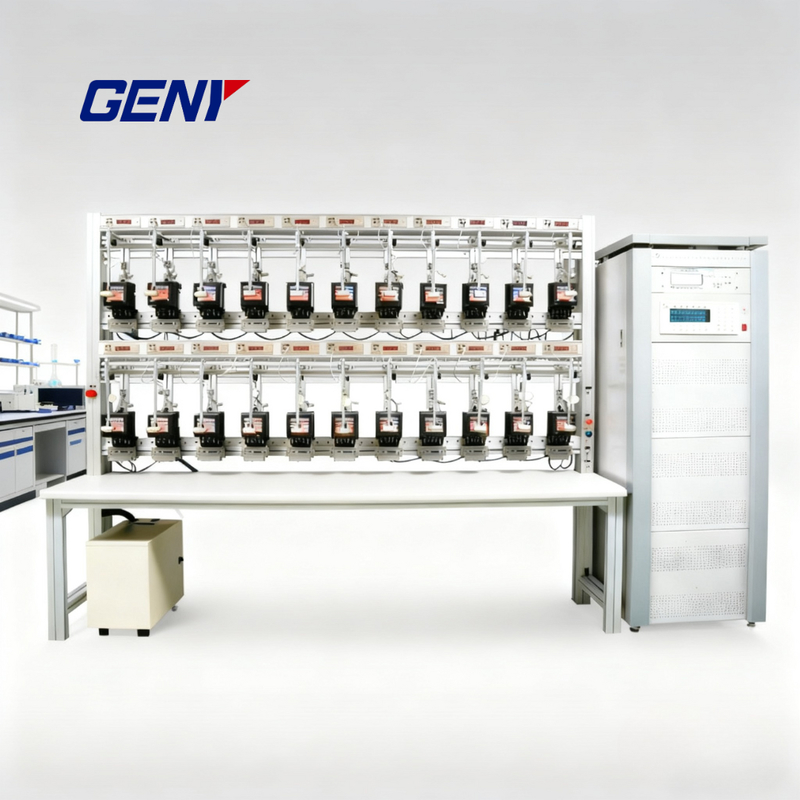

YC1893D Series Automatic Meter Test System

The YC1893D Series Meter Test System is a fully automatic, high-precision three-phase energy meter testing solution. It is fully compliant with IEC 60736 and supports testing in accordance with IEC 62052-11, IEC 62053-11/21/22/23/24, IEC 62056, EN 50470-1/2/3, and IEC 61010 standards. Designed for utility companies, meter manufacturers, and metrology laboratories, the YC1893D offers accurate, stable, and efficient calibration and verification of electric energy meters.

Key Capabilities

Fully automatic, semi-automatic, or manual testing of mechanical, electromechanical, and electronic energy meters
Supports 3P4W, 3P3W, and 1P2W meter connections
Active power, reactive power, and cross-connected reactive power testing
Simultaneous testing of meters with different constants
Automatic rotor mark positioning for mechanical meters; includes starting and creeping tests
Optional neutral current testing and closed-link three-phase testing (I-P links)
Comprehensive protection against overload, short circuit, and open current; synchronized scanning heads for easy control
Windows®-based software for error, harmonic, demand, and influence tests; compatible with Windows 2000/XP/7/8/10

Key Features

Supports multiple meter types: Measures mechanical, electromechanical, and electronic meters via automatic, semi-automatic, or manual operation
Durable and lightweight structure: Made of aluminum alloy, strong, corrosion-resistant, and easy to handle
Automatic rotor mark positioning: Increases efficiency for mechanical meter testing
Synchronized scanning heads: Simplifies control and improves alignment accuracy
Comprehensive automatic tests: Includes accuracy, repeatability, creep, starting current, dial/register, meter constant, influence quantity (voltage, unbalance, frequency, harmonic distortion, reverse phase), pre-warming, dips/interruptions, sub/odd harmonics, and tampered single-phase meter testing
Simultaneous measurement: Tests meters with different constants at the same time
Safety protection: Built-in protection for overload, short voltage circuits, and open current circuits
IEC-compliant harmonic testing: Sub and odd harmonics tests follow IEC standards
