GENY YC1893D Smart Automatic Meter Test System with 3 × (24V – 300V) Test Voltage Output and 0.005%/h Stability

GENY YC1893D Smart Automatic Meter Test System with 3 × (24V – 300V) Test Voltage Output and 0.005%/h Stability

Nama merek:	GENY
Nomor Model:	YC1893D
MOQ:	1
harga:	negotiate rates
Ketentuan Pembayaran:	T/t, l/c, d/p, t/t
Kemampuan Penyediaan:	5 set / 1 bulan

Informasi detil

Deskripsi Produk

Informasi detil

Tempat asal:

Sertifikasi:

ISO, CE

Struktur:

All-in-one

Voltase:

3 × 220V±10%

Output tegangan uji (fase-netral):

3 × (24V – 300V)

Kekuatan keluaran tegangan:

3 × 1000VA

Stabilitas:

Lebih baik dari 0,005%/jam (waktu integrasi 150 detik)

Kepala pemindaian:

Seri YCG-S

Resolusi:

Lebih baik dari 0,01% dari nilai rentang skala penuh

pengaturan akurasi:

Lebih baik dari 0,05% pada nilai kisaran akhir

Kemasan rincian:

Kasus kayu lapis

Menyediakan kemampuan:

5 set / 1 bulan

Menyoroti:

3 × (24V – 300V) Test Voltage Output Meter Test System

3 × 1000VA Power Output Meter Test Bench

0.005%/h Stability Energy Meter Test Bench

Deskripsi Produk

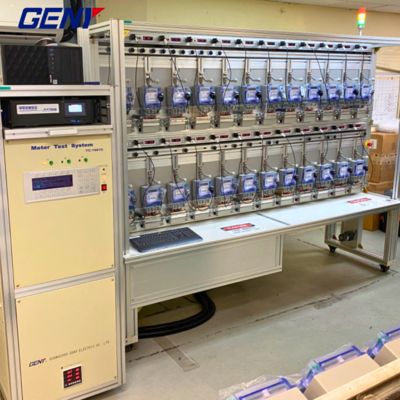

GENY YC1893D – Smart Automatic Meter Test System

The GENY YC1893D Meter Test System is a high-performance, fully automatic meter testing and calibration solution designed for both single-phase and three-phase electric energy meters.

Ideal Applications

Electric energy meter manufacturers
Power utilities
National metrology laboratories
Quality inspection and measurement departments
Industrial enterprises

Cutting-Edge Technology & Modular Design

GENY's meter test systems integrate advanced electronic measurement technology with a modular system architecture. By combining different reference standards and high-precision power amplifiers, the system can be configured to meet a wide range of customer needs.

System Components

Three-phase power source for generating stable, programmable test conditions
Three-phase reference standard meter for precise measurement
Meter suspension racks supporting both single-phase and three-phase meter testing
Smart meter function testing tools, including:
- Fixed voltage outputs
- Optical probe interface
- Relay control testing
- Optional ripple control box
Control PC and dedicated software for full system automation
Additional components as required for specific test cases

Technical Specifications

Technical spec.	YC1893D-ICT-6	YC1893D-ICT-12	YC1893D-ICT-24	YC1893D-ICT-48
Number of meter positions equipped ICT	6	12	24	48
Accuracy class of ICT	0.05 / 0.01
Accuracy	0.05
Power Source	YCS-103-250	YCS-103-600	YCS-103-1200	YCS-103-2500
Standard Meter	SZ03A-K6 / SZ03A-K8 (customized)
Scanning Head	YCG-S Series
Voltage
Test voltage output(Phase-Neutral)	3x(24V~288V)(or customized)
Power of the voltage output	Max. 3x100VA	Max. 3x250VA	Max. 3x500VA	Max. 3x1000VA
Resolution	Better than 0.01% of full scale value of range
Setting accuracy	Better than 0.05% at the final range value
Stability	Better than 0.005% /h (integration time 150s)
Load regulation from 0~max. load	Better than 0.01%
Distortion factor	Better than 0.3% for linear resistance load
Harmonic	2nd~21st free programmable
Current
Test current output	3x(1mA~100A)
Power of the current output	Max. 3x150VA	Max. 3x350VA	Max. 3x750VA	Max. 3x1500VA
Phase angle	0~360⁰
Frequency	45Hz~65Hz
Voltage supply	3x220/380V±10%(or customized) 50/60Hz ±2Hz
Ambient temperature	-10°C~+40°C
Relative humidity	35%~85%
