High Accuracy 0.05 Meter Test Equipment with 3（24v-300v） Test Voltage Output and 3(1mA-120A/200A） Test Current Output

High Accuracy 0.05 Meter Test Equipment with 3（24v-300v） Test Voltage Output and 3(1mA-120A/200A） Test Current Output

Nama merek:	GENY
Nomor Model:	YC1893D
MOQ:	1 buah
harga:	Bisa dinegosiasikan
Ketentuan Pembayaran:	L/c, t/t, d/p
Kemampuan Penyediaan:	10 buah per bulan

Informasi detil

Deskripsi Produk

Informasi detil

Tempat asal:

Sertifikasi:

ISO, CE

Dokumen:

Akurasi tinggi:

Kekuatan output voltase uji:

3*（24V-300V）

Uji output arus:

3*(1MA-120a/200a）

Resolusi:

Lebih baik dari 0,01% dari nilai rentang skala penuh

Stabilitas:

Lebih baik dari 0,005%/jam (waktu integrasi 150 detik)

Kemasan rincian:

Karton Ekspor Standar

Menyediakan kemampuan:

10 buah per bulan

Menyoroti:

High accuracy 0.05 Meter Test Equipment

3*（24v-300v） Test Voltage Output Meter Test Equipment

3*(1mA-120A/200A） Test Current Output Meter Test Equipment

Deskripsi Produk

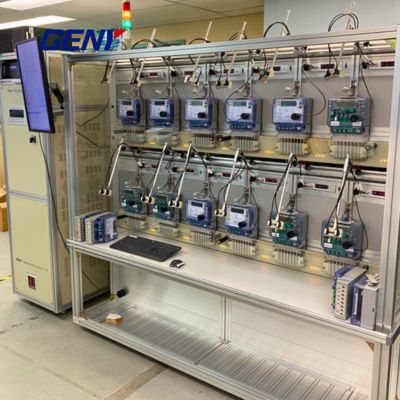

Multi-Function Meter Test Equipment – Supports Electronic & Mechanical Meters

Our meter test system supports automatic, semi-automatic, and manual testing for mechanical, electromechanical, and electronic meters. Built for efficiency, accuracy, and compliance with IEC standards.

Key Features

Compatible with all meter types: Mechanical, electromechanical, and electronic
Flexible operation: Automatic, semi-automatic, or manual modes
Lightweight & durable: Made from corrosion-resistant aluminum alloy
Efficient disc positioning: Automatic rotor mark alignment for mechanical meters
Simplified control: Synchronized scanning heads for easier operation

Automatic Test Functions

Accuracy test (active, reactive, apparent energy)
Error repeatability test
Creep (no-load) test
Starting current test
Dial/register test
Meter constant verification
Influence quantity tests (voltage, frequency, harmonics, reverse phase, etc.)
Pre-warming, dips, and interruptions
Tamper condition test (single-phase meters)
Harmonic tests (Sub and Odd harmonics per IEC)
Calibration of lower-accuracy reference meters

Additional Features

Simultaneous multi-parameter measurement
Built-in protection: Overload, short voltage circuit, open current circuit

Product Images
