Customizable Three-Phase Energy Meter Verification Bench with 24-Meter Positions and 0.05% Setting Accuracy

Customizable Three-Phase Energy Meter Verification Bench with 24-Meter Positions and 0.05% Setting Accuracy

Nama merek:	GENY
Nomor Model:	YC1893D
MOQ:	1 pcs
harga:	Bisa dinegosiasikan
Ketentuan Pembayaran:	L/c, t/t, d/p
Kemampuan Penyediaan:	30 pcs per bulan

Informasi detil

Deskripsi Produk

Informasi detil

Tempat asal:

Sertifikasi:

ISO, CE

Dokumen:

Uji output arus:

3 × (0,3mA - 20a)

Daya output saat ini:

3 × 1500va

Kekuatan keluaran tegangan:

3 × 1000VA

Rentang frekuensi:

45Hz 65Hz

pengaturan akurasi:

Lebih baik dari 0,05% pada nilai kisaran akhir

Stabilitas:

Lebih baik dari 0,005%/jam (waktu integrasi 150 detik)

Kemasan rincian:

Kasing kayu lapis

Menyediakan kemampuan:

30 pcs per bulan

Menyoroti:

24-Meter Positions Energy Meter Test Bench

60° Bevel Structure Stationary Meter Test Bench

0.05% Setting Accuracy Three-Phase Energy Meter Verification Bench

Deskripsi Produk

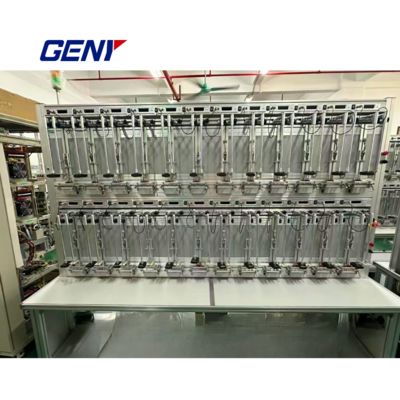

Customizable Three-Phase Energy Meter Verification Bench

Customized Part

1. Automatic Suspension Test Rack

Three-phase 24-meter positions distributed on two sets of meter racks
Each rack has two rows arranged on one side with 6 positions per row
Equipped with rotatable mechanism
Suspension rack adopts 60° bevel structure (adjustable angle) relative to horizontal plane

Complete protection against direct and indirect electric shocks

Three-color indicator light on top of each rack
Automatic wiring function for each position
Fully automatic wiring and positioning capability
Stepping motor drives automatic wiring for each station
Near-infrared reading head and photoelectric head automatically align with meters
Automatic short-circuit function for each station
Automatic open circuit status checking with short circuit activation

Each meter position has customized QCD for Landis+Gyr meter models E650/E660/E850/E860:

A 24-port MOXA serial port server installed under the table-board provides meter communication capability for simultaneous automatic calibration.

Tag:

SmartCal Meter Testing Bench with 3 × 220V±10% Voltage, 3 × (24V – 300V) Test Voltage, and 3 × (0.3mA – 20A) Current Output
