Three-Phase Meter Test Equipment for Smart Meters

Three-Phase Meter Test Equipment for Smart Meters

Nama merek:	GENY
Nomor Model:	YC-1893D
MOQ:	1PCS
harga:	Bisa dinegosiasikan
Ketentuan Pembayaran:	L/C,T/T,D/P
Kemampuan Penyediaan:	30pcs per month

Informasi detil

Deskripsi Produk

Informasi detil

Place of Origin:

CHINA

Sertifikasi:

ISO, CE

Dokumen:

Output Current Range:

1mA -120A (Up to 230A Max)

Output Current Power:

2000VA (Max)

Output Voltage Power:

1000VA (Max)

Output Voltage Range:

24V -288V

Frequency Adjustment Range:

45Hz -65Hz

Packaging Details:

plywood case

Supply Ability:

30pcs per month

Menyoroti:

three-phase smart meter tester

stationary meter test equipment

smart meter testing device

Deskripsi Produk

Three-Phase Meter Test Equipment for Smart Meters

Product Specifications

Attribute	Value
Output Current Range	1mA -120A (Up to 230A Max)
Output Current Power	2000VA (Max)
Output Voltage Power	1000VA (Max)
Output Voltage Range	24V -288V
Frequency Adjustment Range	45Hz -65Hz

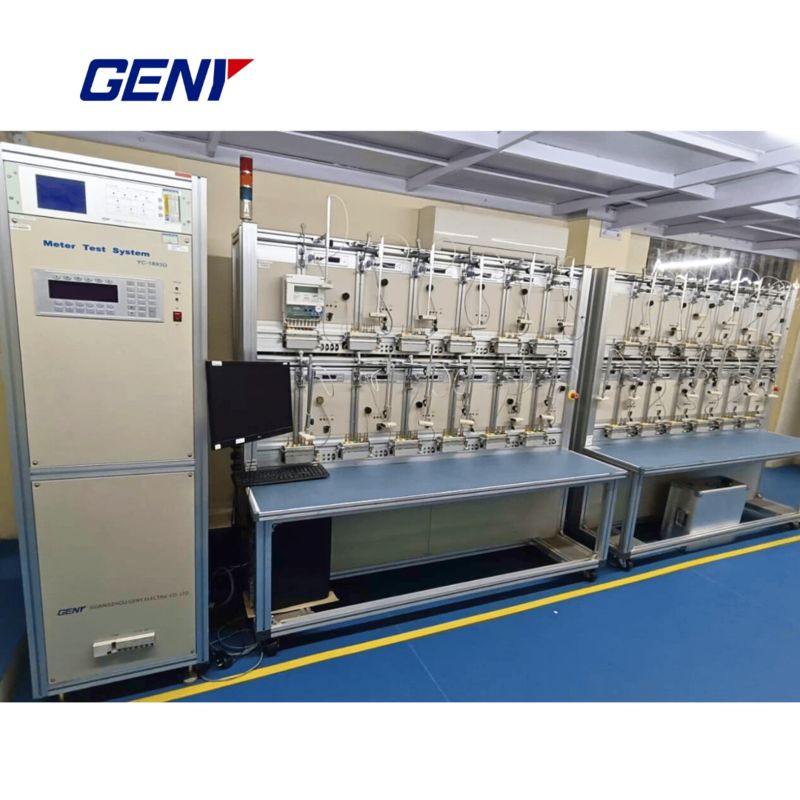

The YC-1893D Series Three-Phase Energy Meter Test Equipment is widely used by power utilities, energy meter manufacturers, metrology and quality inspection institutions, as well as industrial and mining enterprises. It is designed for the calibration and verification of three-phase three-wire or three-phase four-wire multifunction energy meters, including electronic energy meters, mechanical energy meters, electromechanical energy meters, and three-phase multi-user meters.

Features and Functions

Active and reactive energy and power metering tests
Automatic calibration for starting current and no-load creep tests
24-hour drift, measurement error, and deviation analysis
Voltage, frequency, harmonic distortion from 2nd to 21st order, and phase sequence influence testing
Non-disconnection testing with open-circuit and short-circuit protection
Simultaneous multi-channel current measurement with auto-detection optical scanning head
Manual and electric meter testing modes with PC-based test software and barcode data input
Scalable meter rack with 3 to 60 test positions for batch testing
Bidirectional energy error testing for both active and reactive energy
High-precision clock error testing using SW-5D time base module
Communication protocol testing and time synchronization via broadcast signal
Energy meter constant verification using pulse counting, elapsed time, or start-stop method
Tariff switching test, demand interval error testing, and demand value error analysis
Automated register reading and combined register error testing
Optional test functions including power consumption analysis, tilt sensitivity testing, and prepaid energy meter test suite
