3–60 Position Smart Meter Test Equipment

Nama

3–60 Position Smart Meter Test Equipment

Nama merek:	GENY
Nomor Model:	YC-1891D
MOQ:	1 pcs
harga:	Bisa dinegosiasikan
Ketentuan Pembayaran:	L/c, t/t, d/p
Kemampuan Penyediaan:	30pcs per bulan

Informasi detil

Deskripsi Produk

Informasi detil

Tempat asal:

CINA

Sertifikasi:

ISO, CE

Dokumen:

Single-phase meter test sys...em.pdf

Output rentang arus:

1mA -120A (Hingga 230A Maks)

Output daya arus:

2000va (maks)

Daya tegangan output:

1000VA (maks)

Rentang tegangan output:

24V -288V

Kemasan rincian:

Kasing kayu lapis

Menyediakan kemampuan:

30pcs per bulan

Menyoroti:

3–60 position smart meter tester

,

stationary meter test equipment

,

smart meter test equipment with warranty

Deskripsi Produk

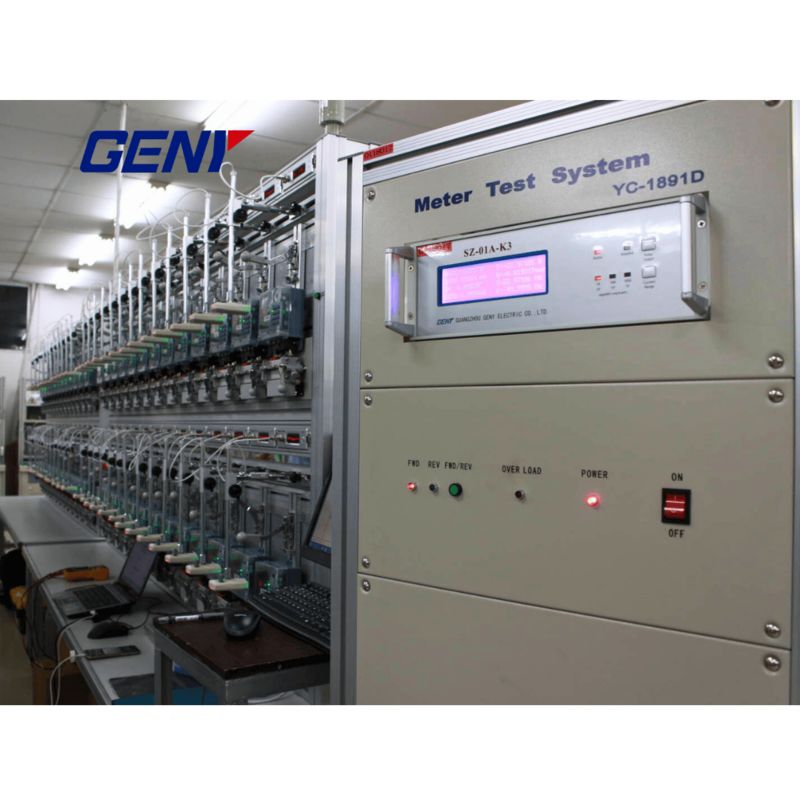

3–60 Position Smart Meter Test Equipment

Key Specifications

Output Current Range	1mA -120A (Up to 230A Max)
Output Current Power	2000VA (Max)
Output Voltage Power	1000VA (Max)
Output Voltage Range	24V -288V

Technical Specifications

Power Supply	AC220V±10%, 50Hz±2Hz
Ambient Temperature	-10°C ... +40°C
Ambient Humidity	35% ... 95%
Output Voltage Range	24V ... 288V
Output Voltage Power	1000VA (Max)
Voltage Resolution	0.01%
Voltage Stability	0.02%/120s
Load Change Rate	0.01%
Voltage Distortion	≤0.3% (Full linear load range)
Output Current Range	1mA ... 120A (Up to 230A Max)
Output Current Power	2000VA (Max)
Current Resolution	0.01%
Current Stability	0.02%/120s
Current Distortion	≤0.3% (Full linear load range)
Continuous Current	100A
Phase Adjustment Range	0° ... 360°
Phase Resolution	0.01°
Frequency Adjustment Range	45Hz ... 65Hz
Frequency Resolution	0.01Hz
Power Output Stability	0.02%/120s

Key Features

Active/reactive power & energy metering tests
Starting & creep tests with auto-calibration
24 h drift, error, deviation analysis
Voltage, frequency, harmonic (2-21), phase-sequence influence tests
Non-disconnect testing, open-circuit & short-circuit protection
Simultaneous current measurement; optical head auto-scan
Electric/manual modes, PC software for data, barcode input
3-60 meter positions, rack scalable

Special Functions

Bidirectional active & reactive energy error testing
SW-5D precision time-base for daily clock-error measurement
Communication protocol test and broadcast time synchronization
Constant verification (pulse counting, elapsed-time, or start-stop energy methods)
Tariff-switching, demand-interval, and demand-value error testing
Register reading and combined register error testing
Optional: power-consumption test, tilt-influence test, prepaid-meter test suite

3–60 Position Smart Meter Test Equipment 0

3–60 Position Smart Meter Test Equipment 1

3–60 Position Smart Meter Test Equipment 2
