Precision Stationary Meter Test Bench for Accurate Calibration and Verification

Precision Stationary Meter Test Bench for Accurate Calibration and Verification

Nama merek:	GENY
Nomor Model:	YC1893D-12
MOQ:	1 pcs
harga:	Bisa dinegosiasikan
Ketentuan Pembayaran:	L/C,T/T,D/P

Informasi detil

Deskripsi Produk

Informasi detil

Tempat asal:

Sertifikasi:

ISO, CE

Keakuratan:

00.05 / 0.02

Keluaran tegangan uji (Fase-Netral):

3* (24V ~ 288V) (atau disesuaikan)

Uji keluaran saat ini:

3* (1mA - 100A)

Sumber tegangan:

3x220/380V ± 10%(atau disesuaikan) 50/60Hz ± 2Hz

Deskripsi Produk

Precision Stationary Meter Test Bench for Accurate Calibration and Verification

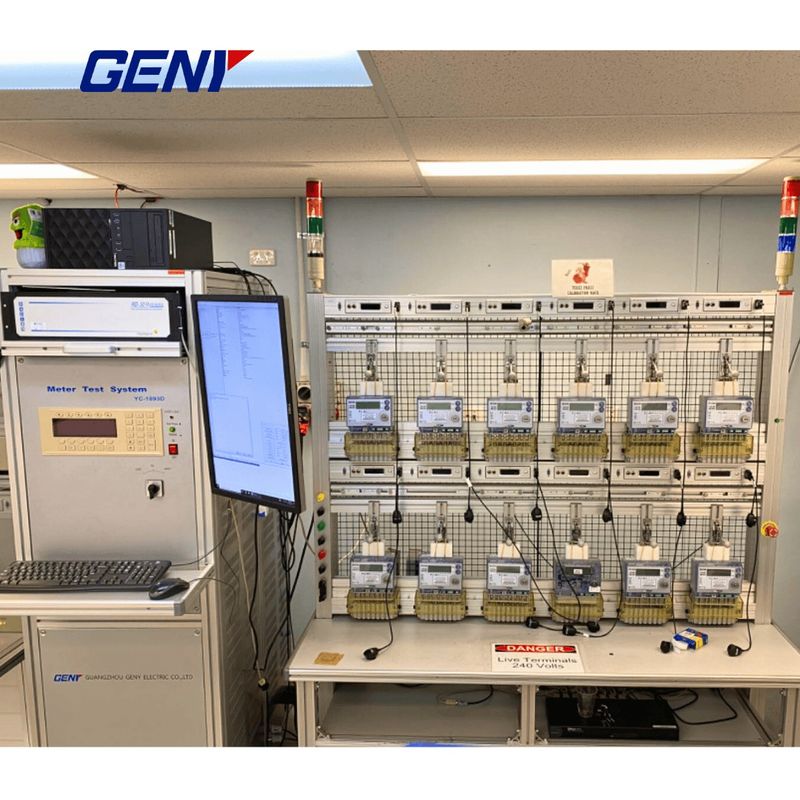

Guangzhou GENY Electric Co. Ltd. The YC-1893D series three-phase electricity meter calibration device is a versatile tool for calibrating various types of three-phase meters, including multifunctional, electronic, mechanical, and multi-user meters. It is widely used in power departments, meter manufacturing plants, metrology agencies, and industrial enterprises.

Specifications

Main Technical Parameters	Description
Power Supply	3P4W 3×380V±10%, 50Hz±2Hz
Ambient Temperature	-10℃ to +40℃
Ambient Humidity	35% to 95%
Output Voltage Range (Phase-to-Neutral)	3×40V to 450V
Output Voltage Power	3×1000VA (Maximum)
Voltage Resolution	0.01%
Voltage Stability	0.02%/120s
Load Change Rate	0.01%
Voltage Distortion	≤0.3%
Output Current Range	3×1mA to 120A (Maximum up to 230A upon customer request)
Output Current Power	3×2000VA (Maximum)
Current Resolution	0.01%
Current Stability	0.02%/120s
Load Change Rate	0.01%
Current Distortion	≤0.3% (Full linear load range)
Continuous Current	100A
Maximum Continuous 20-Minute Current	120A
Phase Adjustment Range	0° to 360°
Phase Resolution	0.01°
Frequency Adjustment Range	45Hz to 65Hz
Frequency Resolution	0.01Hz
Power Output Stability	0.02%/120s

Features and Functions

The MTS is designed for precise testing and calibration, meeting international standards and enhancing efficiency:

Smart Meter Testing
Supports parallel communication via RS232 for smart meter testing.
Calibration for 3-Phase Meters
Suitable for calibrating 3-phase energy meters, including Landis+Gyr models.
IEC Standard Compliance
Performs key tests in line with IEC standards, including:
- Accuracy and no-load tests
- Starting current and repeatability tests
- Influence of voltage, frequency, and harmonics
Pre-warming for Stability
Ensures stable testing conditions with a pre-warming function.
Custom Features
- Automatic wiring and short-circuit functions for each station.
- Custom Quick Connection Device (QCD) for Landis+Gyr meters.
- PC software for ESAM testing.
