| Nama merek: | GENY |

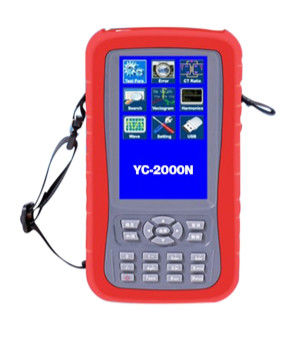

| Nomor Model: | YC-2000N |
| Ketentuan Pembayaran: | L/C, T/T |
| Kemampuan Penyediaan: | 300/Tahun |
| Lingkungan | Keamanan | ||||
| Suhu Operasi | Kelembaban Relatif | Kelembaban Relatif | Ketinggian | Kelas IP | Kesesuaian |
| -10°C-55°C | 5%-95% | 5%-95% | < 2500m | 40 | IEC |
| Model | YC-2000N | YC-2000C | |||
| Tegangan Uji | |||||
| Jangkauan | 00~275V ((test leads 0~300V ((baterai) | 5 ~ 380V | |||
| Kesalahan | ± 0,1% | ± 0,2%/0,5% | |||
| Harmonik | 2 ~ 51st | 1 sampai 31 | |||
| Arus Uji | |||||
| Jangkauan (mode langsung) | 10A | - | |||
| Kesalahan (mode langsung) | ± 1% | - | |||
| Jangkauan (Clamp-on CT) | 5/10A,20A,50A,100A | 100A | |||
| Kesalahan ((Clamp-on CT) | ± 0,2% | ±1,2%/0,5% | |||
| Harmonik | 1 ~ 51 | 1 sampai 31 | |||
| Kesalahan Pengukuran Energi Daya | |||||
| Aktif (Clamp-on CT) | ± 0,2% | ± 0,2%/± 0,5% | |||
| Reaktif (Clamp-on CT) | ± 0,5% | ± 0,5%/± 1,0% | |||
| Sudut Fase | |||||
| Jangkauan | 0°~360° | 0°~360° | |||
| Kesalahan | ± 0,1° | < ± 0,05° | |||
| Frekuensi | |||||
| Jangkauan | 45 ~ 65Hz | 45 ~ 65Hz | |||
| Kesalahan | ± 0,01Hz | ± 0,005Hz | |||
| Keluarnya pulsa | |||||
| Frekuensi Tinggi | 3.6x10^8 imp/kW.h | 3.6x10^8 imp/kW.h | |||
| Frekuensi Rendah | 7200 imp/kW.h | 72(0 imp/kW.h | |||
| Rasio denyut nadi | 1:01 | 1:01 | |||
| Tingkat output | 4.5 ~ 5.5V | 4.5 ~ 5.5V | |||
| Masukan pulsa | |||||
| Tingkat Masukan | DC 4,5 ~ 12V | DC 4,5 ~ 12V | |||
| Frekuensi input | Maksimal 10 kHz | Maksimal 10 kHz | |||
| lainnya | |||||
| Sumber Daya | Tegangan uji, baterai (opsional) | Baterai | |||
| Tampilan | 5° layar sentuh TFT ((800*480) | Layar sentuh berwarna | |||
| Penyimpanan Data | 2000 set | 999 set | |||
| Dimensi | 215mm x 120mm x 52mm | 195mm x 80mm x 35mm | |||
| Berat badan | 1 kg | 0.4kg | |||
