YC-1891D-24 Single-phase Electric Energy Meter Testing System Accurate

Name: YC-1891D-24 Single-phase Electric Energy Meter Testing System Accurate
Brand: Guangzhou GENY Electric Co., Ltd
SKU: YC1893D/YC1891D
Availability: InStock

Nama merek:	GENY
Nomor Model:	YC1893D/YC1891D
MOQ:	1 buah
harga:	Bisa dinegosiasikan
Ketentuan Pembayaran:	L/c, t/t, d/p
Kemampuan Penyediaan:	100/tahun

Informasi detil

Deskripsi Produk

Informasi detil

Tempat asal:

CINA

Sertifikasi:

ISO, CE

Tegangan Uji (Fase-Netral):

3 × (24 V - 500 V) atau disesuaikan

Tes saat ini::

3 × (1 mA - 120 A)

pengaturan akurasi:

Lebih baik dari 0,05% pada nilai kisaran akhir

Stabilitas:

Lebih baik dari 0,005%/jam (waktu integrasi 150 detik）

Faktor distorsi:

Lebih baik dari 0,3% untuk beban resistansi linier

Kemasan rincian:

Kasus Kayu Lapis

Menyediakan kemampuan:

100/tahun

Menyoroti:

Single-phase electric energy meter tester

Stationary meter test system accurate

YC-1891D-24 energy meter tester

Deskripsi Produk

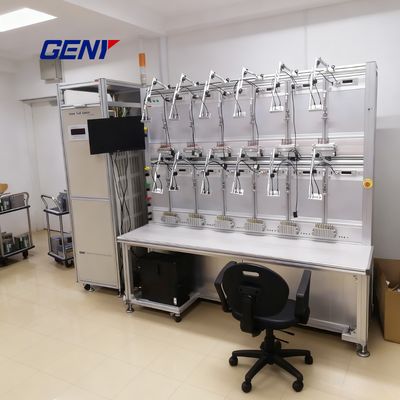

YC-1891D-24 Single-phase Electric Energy Meter Testing System Accurate

Smart Energy Meter Test System with Programmable Harmonics & High Accuracy

Guangzhou GENY Electric Co., Ltd Meter Test System is a high-precision solution designed for testing, calibration, and verification of single-phase and three-phase energy meters. Built with advanced control and measurement technology, it ensures exceptional accuracy, stability, and reliability under a wide range of environmental and electrical conditions. Perfect for laboratories, power utilities, and meter manufacturers.

Specifications

Power Source

Voltage Output

Test Voltage (Phase-Neutral): 3 × (24 V - 500 V) or customized
Output Power: 3 × 100 VA
Resolution: < 0.01% of full-scale range
Setting Accuracy: < 0.05% at final range value
Stability: < 0.005%/h (integration time 150 s)
Load Regulation (0-max): < 0.01%
Distortion Factor: < 0.3% (linear resistive load)
Harmonics: Programmable 2nd to 21st order

Current Output

Test Current: 3 × (1 mA - 120 A)
Output Power: 3 × 150 VA
Resolution: < 0.01% of full-scale range
Setting Accuracy: < 0.05% at final range value
Stability: < 0.005%/h (integration time 150 s)
Load Regulation (0-max): < 0.01%
Distortion Factor: < 0.3% (linear resistive load)
Harmonics: Programmable 2nd to 21st order

Phase Angle

Range: 0° - 360°
Resolution: 0.01°
Accuracy: ±0.1°

Frequency

Range: 45 Hz - 65 Hz
Resolution: 0.01 Hz

Key Features & Benefits

High-precision measurement with accuracy up to ±0.01%
Programmable harmonics for flexible testing (2nd-21st order)
Stable operation under wide temperature and humidity ranges
User-customizable voltage and current output ranges
Built-in surge protection and advanced grounding system
Ideal for energy meter calibration, power testing, and R&D applications
