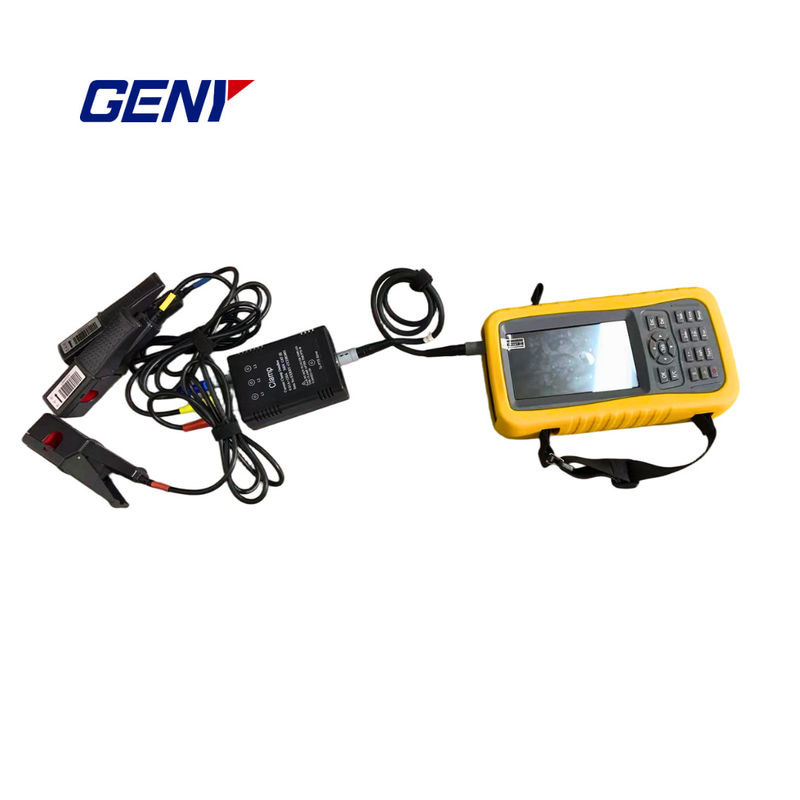

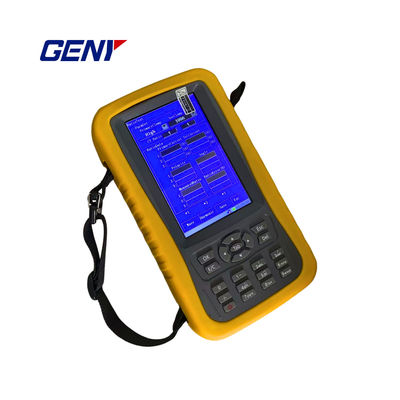

YC-98S1H Portable Energy Meter Test Set

Name: YC-98S1H Portable Energy Meter Test Set
Brand: Guangzhou GENY Electric Co., Ltd
SKU: YC-98S1H
Availability: InStock

Informasi detil

Tempat asal:

Cina

Sertifikasi:

ISO 14001

Model NO.:

YC-98S1H

Test Voltage Range:

0~440V

Uji Rentang Arus (Mode Langsung):

0,001~12A

Phase Angle Range:

-180°~ 180°

Rentang frekuensi:

45 ~ 65Hz

Fitur Teknis:

Mampu melakukan tes CT tiga fase

Deskripsi Produk

■ On-site error measurement of electricity meters

■ Accuracy class 0.05 in direct mode

■ Current measurement with AC clamps from 5A to 2000A

■ Harmonics up to 51 st

■ Burden measurement for CT/PT

■ Ratio measurement for CT/PT

■ Ratio measurement for High voltage CT up to 35KV (optional)

■ 5 inch TFT touch LCD

■ Power supply via external supply, test voltage or battery

■ Handheld type with weight of 0.9KG

■ Capable of conducting three - phase CT tests

Application Conditions and Requirements
Environment			Safety
Operation Temperature	Relative Humidity	Altitude	IP Class	Conformity
-25℃-45℃	40%-95%	<2500m	51	IEC
Model		YC-98S1		YC-98S1H
Test Voltage
Range		30-480V		0-440V
Error		±0.05%		±0.05%
Harmonics		2nd - 51st		2nd - 51st
Test Current
Range (Direct mode)		0.025-12A		0.001-12A
Error (Direct mode)		±0.05%		±0.05%
Range (100A Clamp - on CT)		0.5-120A		0.1-120A
Error (100A Clamp - on CT)		±0.2%		±0.2%
Harmonics		2nd - 51st		2nd - 51st
Power/Energy Measurement Error
Active (Direct mode)		±0.05%		±0.05%
Active (100A Clamp - on CT)		±0.2%		±0.1%
Reactive (Direct mode)		±0.1%		±0.1%
Reactive (100A Clamp - on CT)		±0.5%		±0.5%
Other Errors
Ratio Measurement		±0.5%		±0.5%
Voltage Influence		<±0.01%		<±0.01%
Frequency Influence		<±0.01%		<±0.01%
Temperature Influence		<±0.01%/℃		<±0.01%/℃
24h Accuracy Influence		<±0.01%		<±0.01%
Harmonic Influence		<±0.01%		<±0.01%
Phase Angle
Range		-180° - 180°		-180° - 180°
Error		<±0.1°		<±0.1°
Frequency
Range		45 - 65Hz		45 - 65Hz
Error		±0.01Hz		±0.01Hz
Pulse Output
High Frequency (Direct mode)		1.8x10^5 PKWh		1.2x10^5 PKWh
Low Frequency (Direct mode)		360000P/(kWh,kvarh,kVAh)		2400P/(kWh,kvarh,kVAh)
Pulse ratio		1:01		1:01
Output level		5V		5V
Pulse Input
Input Channel		2		2
Input Level		5 - 10V		5 - 10V
Input Frequency		Max. 5kHz		Max. 5kHz
Others
Power Supply		External power, test voltage or battery		External power, test voltage or battery
Display		7" TFT Touch Screen		5" TFT Touch Screen
Dimension (mm)		245×150×50		210×110×52
Weight (KG)		2		0.9
